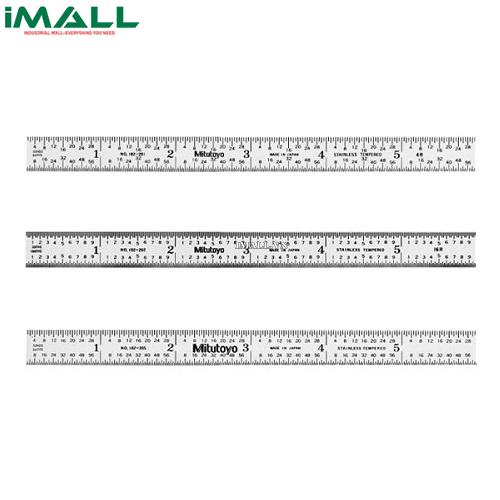

Thước lá thép Mitutoyo Series 182

Name: IMALL
Address: 52/1A Huỳnh Văn Nghệ, P.15, Q.Tân Bình, TP.HCM 700000, Quận Tân Bình, Thành phố Hồ Chí Minh, 700000, Việt Nam
Telephone: 098 7777 209
Price range: $$$

Thương hiệu:

Mitutoyo

Model:

Series 182

Xuất xứ:

Nhật Bản

Bảo hành:

12 tháng

Đơn vị tính:

Cái

VAT:

10 %

Hotline: (028) 3882 8382

Wide Rigid Rules
Metric
Order No.	Graduations (mm)	Range (mm)	Width (mm)
182-111	1, 0.5 (on both faces)	150	19
182-131		300	25
182-151		450	30
182-171		600	30
Inch/Metric
Order No.	Graduations	Range	Width (in)
182-105	1/32 in, 1/64 in, 1 mm, 0.5 mm	6 in/150 mm	0.75
182-125		12 in/300 mm	0.98
182-145		18in/450 mm	1.18
182-165		24 in/600 mm	1.18
182-106	1/50 in, 1/100 in, 1 mm, 0.5 mm	6 in/150 mm	0.75
182-126	1/50 in, 1/100 in, 1 mm, 0.5 mm	12 in/300 mm	0.98
182-107	1/10 in, 1/100 in, 1 mm, 0.5 mm	6 in/150 mm	0.75
182-108	1/10 in, 1/50 in, 1 mm, 0.5 mm	6 in/150 mm	0.75
Inch
Order No.	Graduations (in)	Range (in)	Width (in)
182-101	1/8, 1/16, 1/32, 1/64	6	0.75
182-121		12	0.98
182-141		18	0.71
182-161		24	1.18
182-102	1/50, 1/100, 1/32, 1/64	6	0.75
182-122		12	0.98
182-142		18	1.18
182-162		24	1.18
182-103	1/10, 1/100, 1/32, 1/64	6	0.75
182-123		12	0.98
182-143		18	1.18
182-163		24	1.18
182-104	1/10, 1/50, 1/32, 1/64	6	0.75
182-124	1/10, 1/50, 1/32, 1/64	12	0.98

Fully-Flexible Rules
Metric
Order No.	Graduations (mm)	Range (mm)	Width (mm)
182-211	1, 0.5 (on both faces0	130	12
182-231		300	12
182-251		450	19
182-271		600	19
Inch/Metric
Order No.	Graduations	Range	Width (in)
182-205	1/32 in, 1/64 in, 1 mm, 0.5 mm	6 in/150 mm	0.47
182-225		12 in/300 mm	0.47
182-245		18 in/450 mm	0.75
182-265		24 in/600 mm	0.75
182-206	1/50 in, 1/100 in, 1 mm, 0.5 mm	6 in/150 mm	0.47
182-226	1/50 in, 1/100 in, 1 mm, 0.5 mm	12 in/300 mm	0.47
182-207	1/10 in, 1/100 in, 1 mm, 0.5 mm	6 in/150 mm	0.47
182-208	1/10 in, 1/50 in, 1 mm, 0.5 mm	6 in/150 mm	0.47
Inch
Order No.	Graduations (in)	Range (in)	Width (in)
182-201	1/8, 1/16, 1/32, 1/64	6	0.47
182-221		12	0.47
182-241		18	1.18
182-261		24	0.75
182-202	1/50, 1/100, 1/32, 1/64	6	0.47
182-222		12	0.47
182-242		18	0.75
182-262		24	0.75
182-203	1/10, 1/100, 1/32, 1/64	6	0.47
182-223		12	0.47
182-243		18	0.75
182-263		24	0.75
182-204	1/10, 1/50, 1/32, 1/64	6	0.47
182-224	1/10, 1/50, 1/32, 1/64	12	0.47

Semi-Flexible Rules
Inch/Metric
Order No.	Graduations*	Range	Width (in)
182-302	1/16 in, 1/32 in, 1/64 in,1 mm, 0.5 mm	6 in/150 mm	0.51
182-303		8 in/200 mm	0.51
182-305		12 in/300 mm	0.59
182-307		20 in/500 mm	0.59
182-309		40 in/1000 mm	0.59

Xem thêm

Thước lá thép Mitutoyo Series 182

Các vạch chia độ chính xác và rõ ràng trên lớp mạ hoàn thiện satin-crom.
Chất liệu thép không gỉ tôi luyện.

Xem thêm
