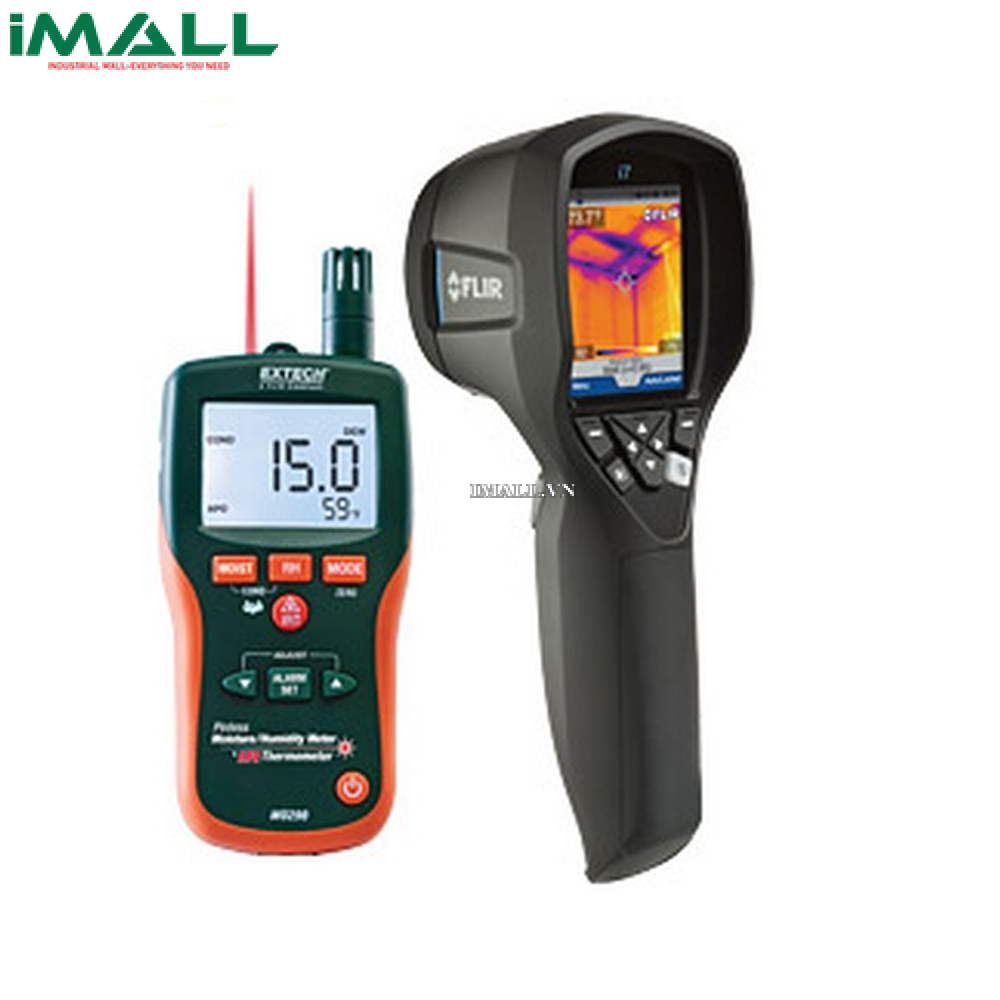

| FLIR i7 | |
| Features | |
| Temperature range | 32°F to 482°F (0°C to 250°C) |
| Image Storage | 5000 Images (microSD card memory) |
| Emissivity | Emissivity Table; 0.1 to 1.0 adjustable |
| Imaging Performance / Image Presentation | |
| Field of view/min focus distance | 17° X 17°/0.6m (2 ft.) |
| Focus | Focus free |
| Thermal sensitivity (N.E.T.D) | <0.1°C at 25°C |
| Detector Type | Focal plane array (FPA) uncooled microbolometer; 120 X 120 pixels |
| Spectral range | 7.5 to 13µm |
| Display | 2.8" color LCD |
| Image Controls | Palettes (Iron, Rainbow, and Black/White) |
| Set-up controls | Date/time, °C/°F, 21 languages |
| Measurement modes | Spot (with correction for emissivity and reflected temperature), Area (Max/Min), Isotherm (above/below selected temperature interval) |
| Battery Type | Li-lon |
| Battery operating time | >4 hours, Display shows battery status |
| Charging system | In camera, AC adapter; 3 hours to 90% capacity |
| AC operation | AC adaptor 90-260VAC, 50/60Hz |
| Adaptor Voltage | 5 VDC output to camera |
| Operating temperature range | 32°F to 122°F (0°C to 50°C) |
| Storage temperature range | -40°F to 158°F (-40°C to 70°C) |
| Humidity | Operating and storage 20% to 80%, non-condensing, IEC 359 |
| Shock | 25G, IEC 68-2-29 |
| Vibration | 2G, IEC 68-2-6 |
| Dimensions/Weight | 8.8x3.1x3.3" (223x79x83mm)/<12oz. 340g="" including="" battery="" td=""> |
| MO290 | |
| Sensor Type | Non-Penetrating |
| Pinless Moisture | 0 to 99.9 (Relative) |
| Pinless Depth | up to 0.75" (19mm) |
| Pin-type Moisture (probe included) | 0 to 99.9% |
| Max Resolution | 0.1, 0.1°F/°C |
| Humidity | 0 to 100%RH |
| Temperature (Air) | -20 to 170°F (-29 to 77°C) |
| Temperature (IR) | -4 to 392°F (-20 to 200°C) |
| Vapor Pressure | 0 to 20.0kPA |
| Dew Point | -22 to 199°F (-30 to 100°C) |
| Mixing ratio | 0 to 999GPP (0 to 160g/kg) |
| Field of View | 8:1 Distance to Target ratio |
| Emissivity | 0.95 fixed |
| Dimensions | 6.5x2.8x1.5” (165x70x38) |
| Weight | 7.4oz (210g) |
